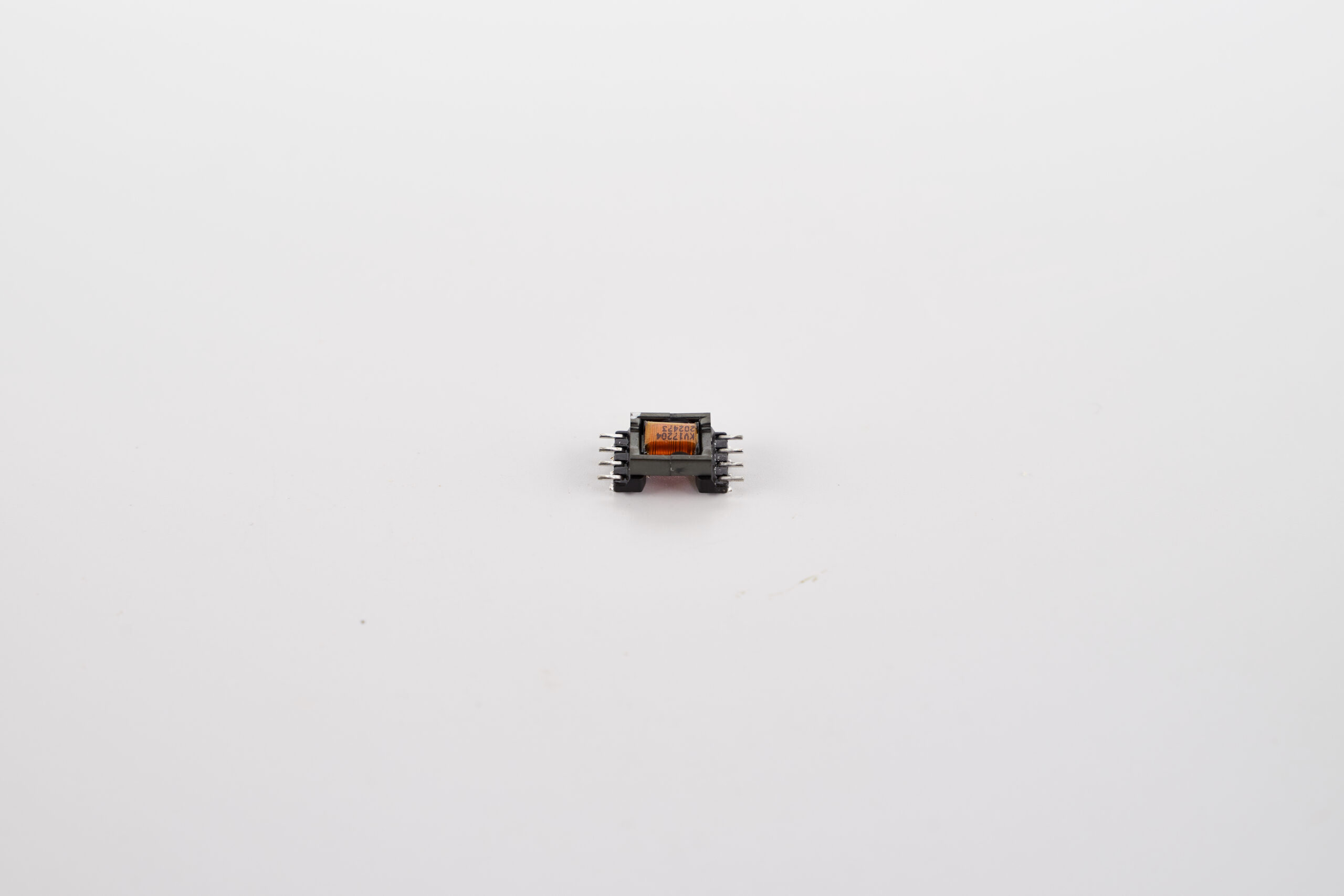

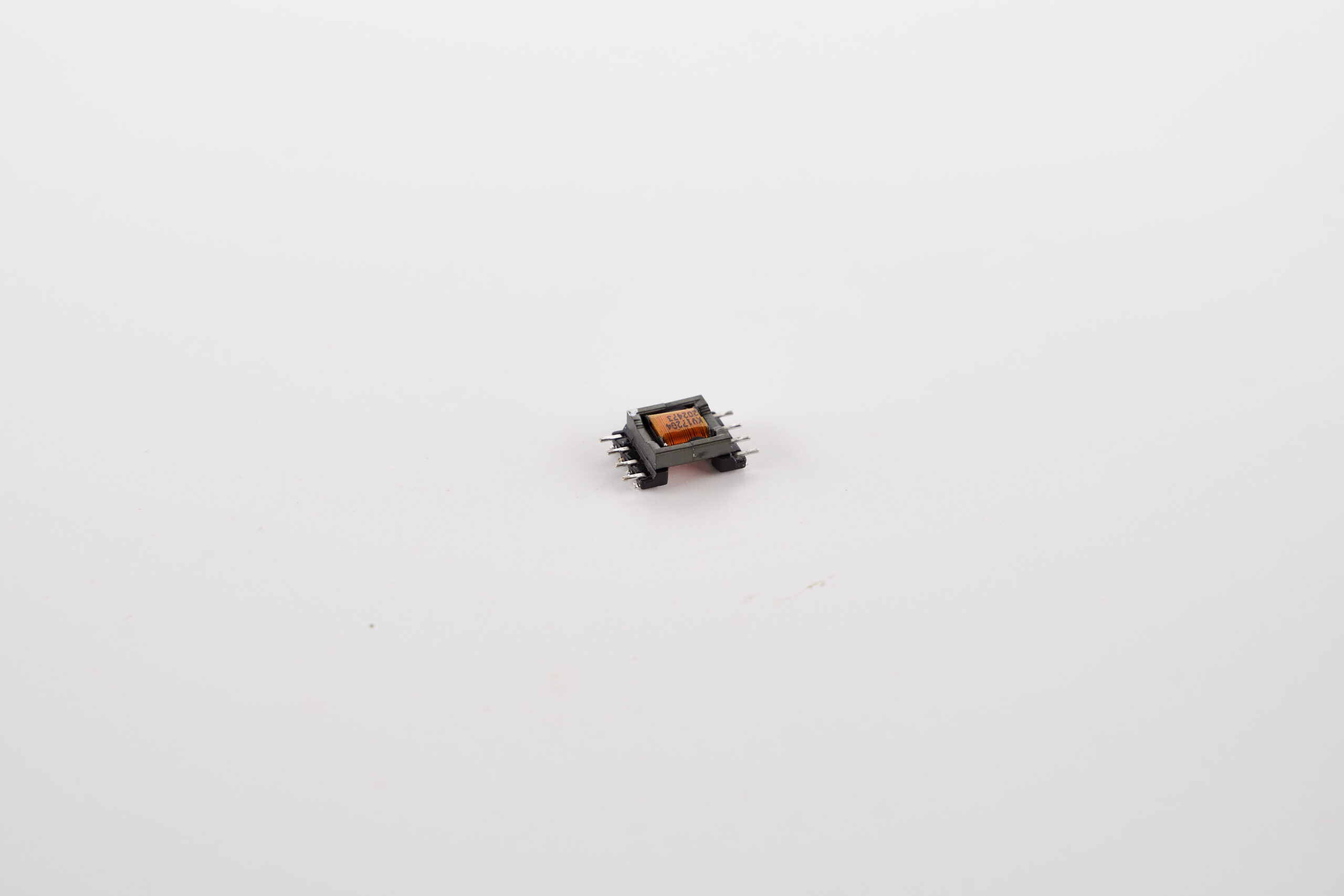

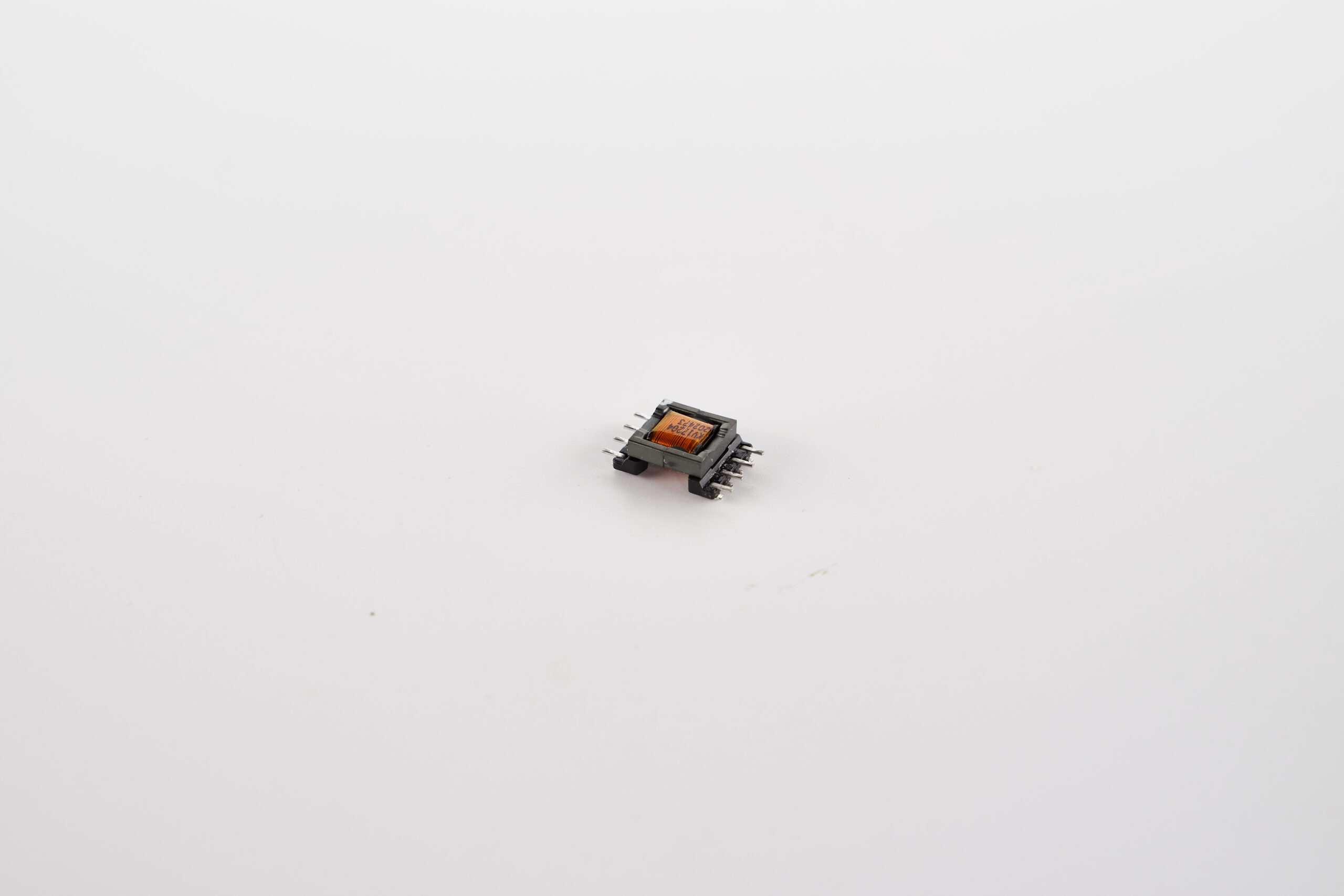

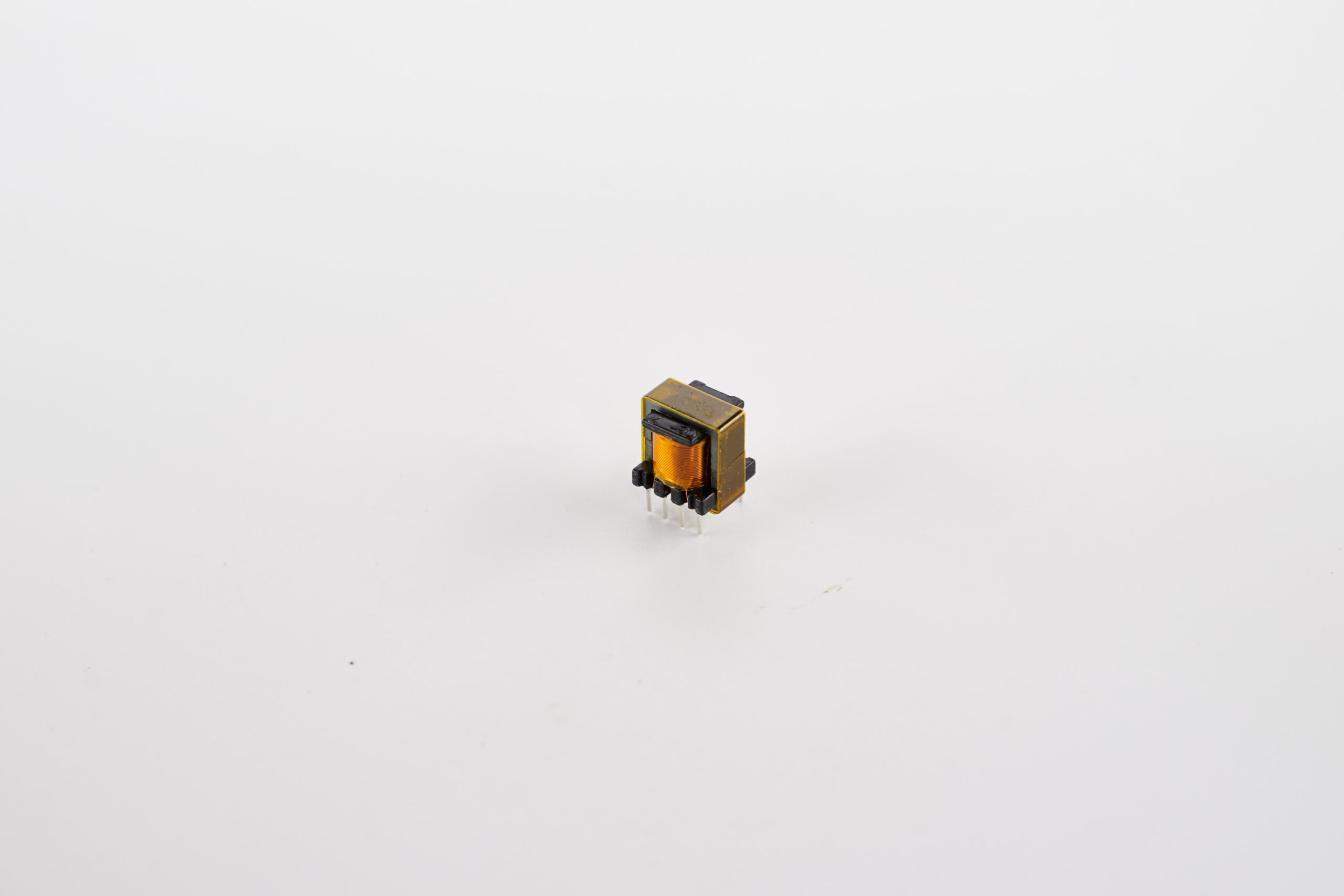

High-Speed Gate Drive Transformer | 1:1 / 1:2 Winding Ratio
Product Overview High-performance Gate Drive Transformers engineered to provide reliable galvanic isolation and deliver high-peak-current driving signals to the gates of power MOSFETs and IGBTs. Designed with a small number of turns (5–30 turns) to minimize leakage inductance and ensure ultra-fast switching speeds. Available in standard 1:1 or 1:2 primary-to-secondary ratios, making them highly versatile for modern high-frequency power switching applications.
Power Rating & Core Size Guide | Core Size | Estimated Power Rating | | :— | :— | | 5mm – 15mm | 0.5 W – 10 W | | 15mm – 25mm | 10 W – 50 W | | 25mm – 40mm | 30 W – 50 W |
Applications Essential for Switch-Mode Power Supplies (SMPS), Uninterruptible Power Supplies (UPS), solar inverters, motor drives, EV chargers, and half-bridge/full-bridge power topologies.
Specifications
|
Winding Construction
|
Primary–Secondary ≈ 1:1 / 1:2small number of turns (5–30 turns) |
|
Core Shape
|
Toroid, EE/EI, RM etc. |
|
Core Size
|
5mm - 15mm : 0.5-10 W15mm - 25mm : 10-50 W25mm - 40mm : 30-50 W |
|
Bobbin Pin Type
|
SMD, Through hole, fly wire |
|
Wire Type
|
Enamelled copper wireTriple / Fully insulated wire (TIW/FIW)Litz / Multi-Strand wire |
|
Wire Size
|
0.10–0.20 mm0.15–0.30 mm0.30–0.5 mm |
|
Packaging Options
|
Tray, Reel |
|
Standards
|
RoHS |
|
Operating Temperatures
|
130°C, 155°C |
