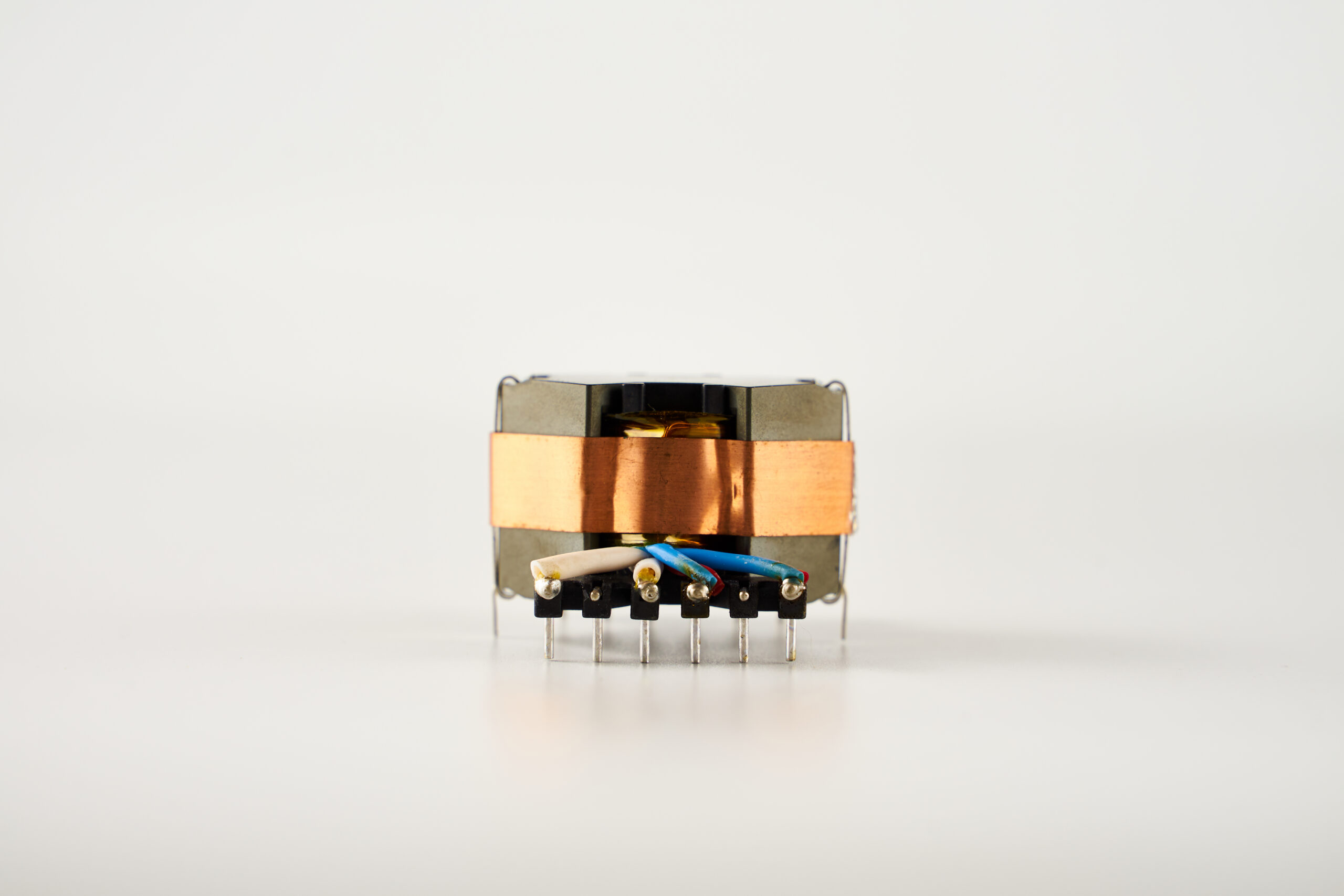

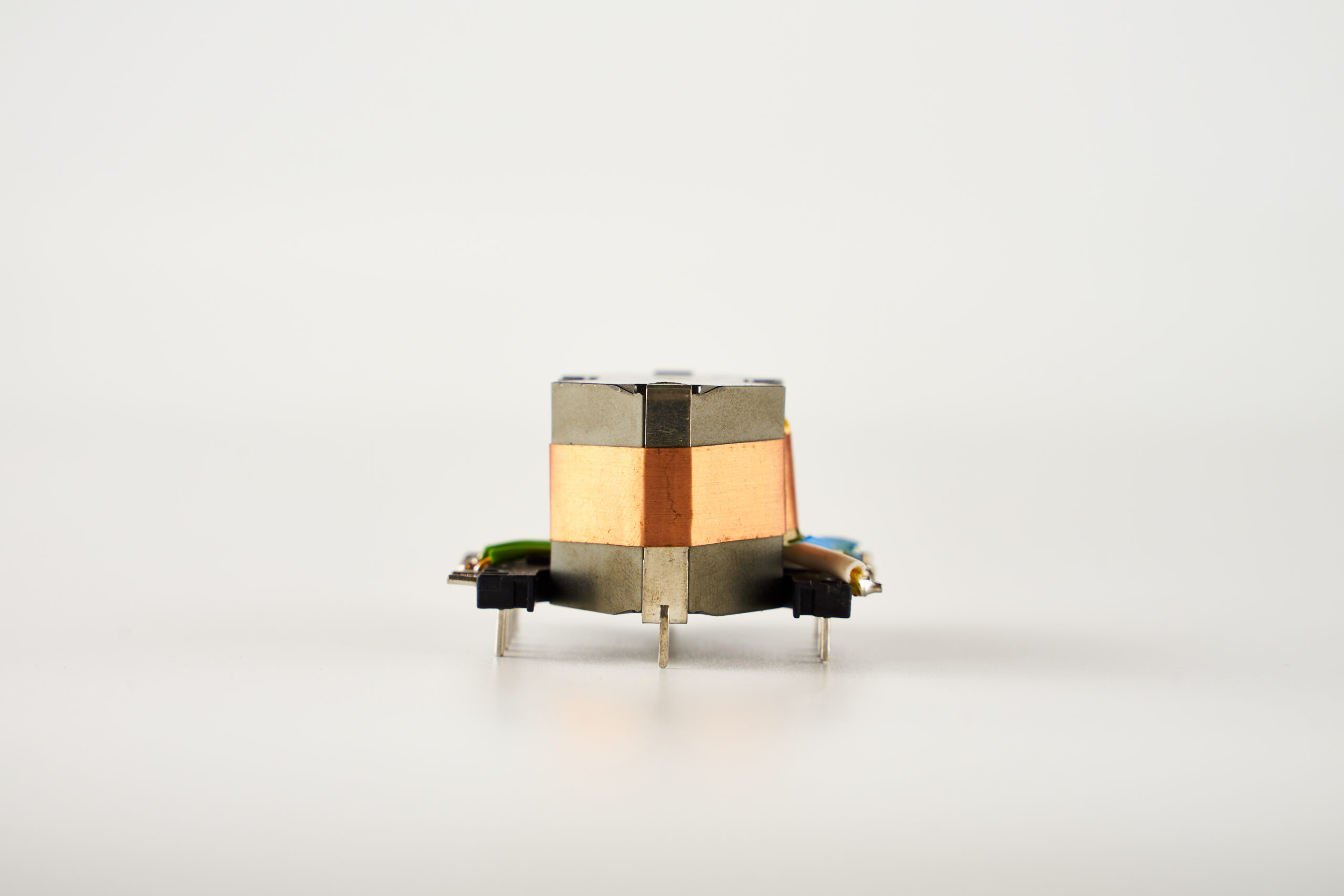

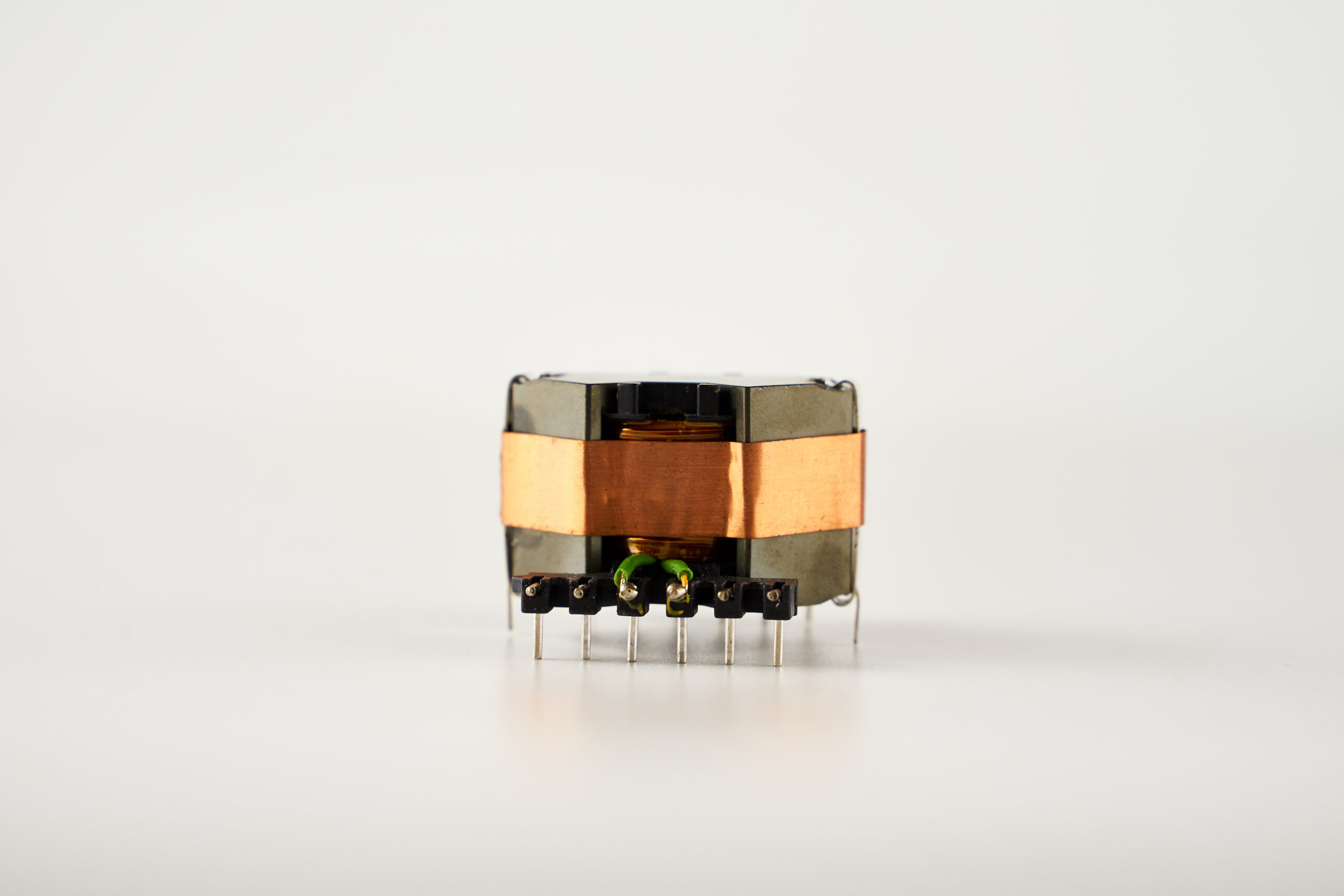

High-Frequency Telecom Transformer | 100kHz - 10MHz+
Product Overview Precision-engineered Telecom Transformers (Signal/Pulse Transformers) designed for high-frequency signal transmission, impedance matching, and galvanic isolation. Operating efficiently across a wide frequency range (100 kHz to 10 MHz+), these transformers feature low turn counts and an approximate 1:1 primary-to-secondary ratio to ensure signal integrity with minimal distortion. Available in compact core geometries like Toroid, EE/EI, and RM.
Power Rating & Core Size Guide | Core Size | Estimated Power Rating | | :— | :— | | 5mm – 10mm | 0.25 W – 2 W | | 10mm – 20mm | 1 W – 5 W | | 20mm – 40mm | 5 W – 50 W | Applications Perfect for telecommunication equipment, network interfaces (LAN/Ethernet), modems (ADSL/VDSL), high-frequency switching circuits, signal isolation, and audio/data impedance matching.
Specifications
|
Winding Construction
|
Low turns (5–100), high frequency (100 kHz – 10 MHz+)Primary–Secondary ≈ 1:1 or small for impedance matching |
|
Core Shape
|
Toroid, EE/EI, RM etc. |
|
Core Size
|
5mm - 10mm : 0.25-2 W10mm - 20mm : 1-5 W20mm - 40mm : 5-50 W |
|
Bobbin Pin Type
|
SMD, Through hole, fly wire |
|
Wire Type
|
Enamelled copper wireTriple / Fully insulated wire (TIW/FIW)Litz / Multi-Strand wire |
|
Wire Size
|
0.08–0.35 mm0.10–0.40 mm0.18–0.80 mm |
|
Packaging Options
|
Tray, Reel |
|
Standards
|
RoHS |
|
Operating Temperatures
|
130°C, 155°C |
