Transformer

All Transformer Products

Flyback Transformer

Flyback Transformer

  • Winding Construction: Primary, Auxiliary and Secondary
  • Core Shape: EE, ETD, EFD, etc.
  • Core Size: 5mm - 20mm : 0.5-10 W20mm - 30mm : 10-50 W30mm - 40mm : 50-150 W
  • +6 more specs
View Details

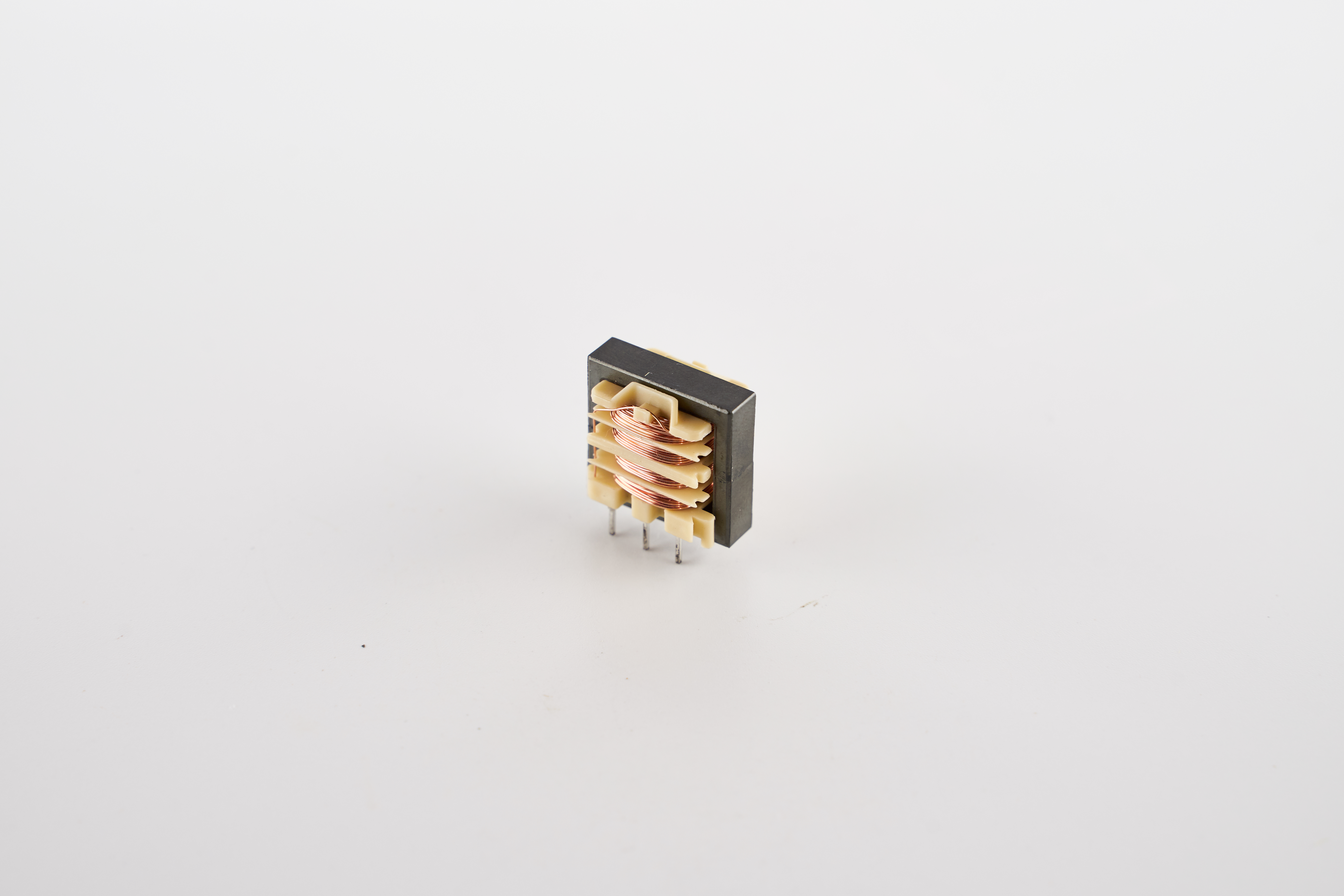

Forward Transformer

Forward Transformer

  • Winding Construction: Primary, Auxiliary and Secondary
  • Core Shape: ETD, EER, PQ etc.
  • Core Size: 5mm - 20mm : 0.5-10 W20mm - 30mm : 10-50 W30mm - 40mm : 50-150 W
  • +6 more specs
View Details
Gate Drive Transformer

Gate Drive Transformer

  • Winding Construction: Primary–Secondary ≈ 1:1 / 1:2small number of turns (5–30 turns)
  • Core Shape: Toroid, EE/EI, RM etc.
  • Core Size: 5mm - 15mm : 0.5-10 W15mm - 25mm : 10-50 W25mm - 40mm : 30-50 W
  • +6 more specs
View Details
Power Transformer

Power Transformer

  • Winding Construction: Primary layer winding and secondaryadd Mylar, PET, Nomex for 220-240 Vbifilar / parallel windingIsolation transformer
  • Core Shape: EI/UI Laminated Steel
  • Core Size: 28mm - 48mm : 1-40 W48mm - 76mm : 40-200 W76mm - 96mm : 200-500 W
  • +6 more specs
View Details
Resonant Transformer

Resonant Transformer

  • Winding Construction: Primary, Auxiliary and Secondary
  • Core Shape: ETD, EER, PQ etc.
  • Core Size: 5mm - 20mm : 0.5-10 W20mm - 30mm : 10-50 W30mm - 40mm : 50-150 W
  • +6 more specs
View Details
Telecom Transformer

Telecom Transformer

  • Winding Construction: Low turns (5–100), high frequency (100 kHz – 10 MHz+)Primary–Secondary ≈ 1:1 or small for impedance matching
  • Core Shape: Toroid, EE/EI, RM etc.
  • Core Size: 5mm - 10mm : 0.25-2 W10mm - 20mm : 1-5 W20mm - 40mm : 5-50 W
  • +6 more specs
View Details
