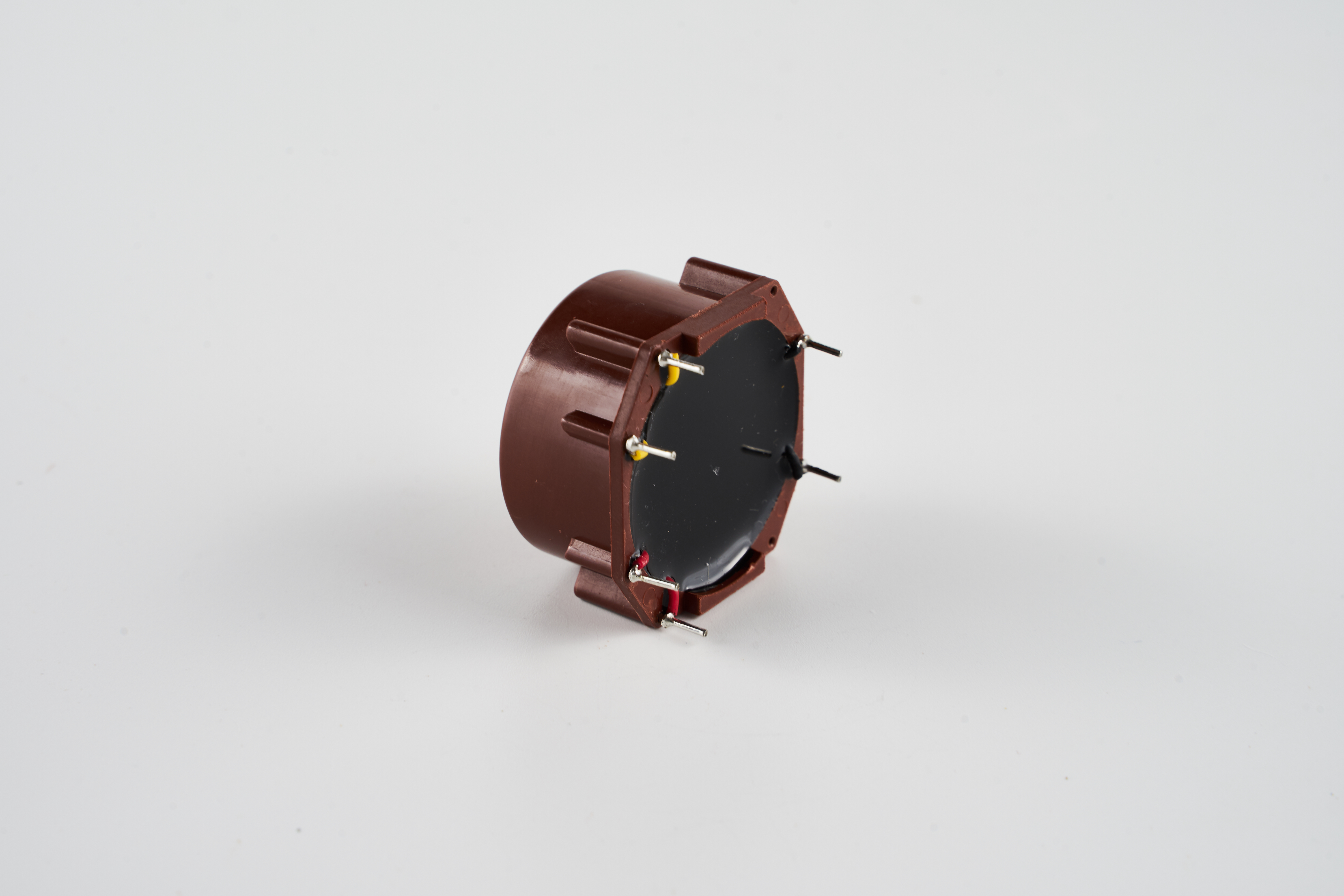

KV Electronics Power Factor Correction (PFC) Chokes are high-performance inductors optimized for boost PFC converter topologies. They store and release energy in synchrony with the switching cycle to shape the input current waveform to match the AC mains voltage, achieving power factors above 0.99 and reducing total harmonic distortion (THD) to comply with IEC 61000-3-2.

Available in toroidal, drum core, and capsulated (encapsulated) configurations, KV PFC chokes offer low DCR for minimal conduction losses, high saturation current to prevent core saturation at peak mains current, and excellent thermal performance for continuous operation.

Key Features

• Inductance: 100μH – 2mH (at rated current)
• Current rating: 2A – 50A continuous
• Core types: toroid, drum core, capsulated
• High saturation current: up to 2× rated current
• Low DCR: <20mΩ (high-current versions)
• Power factor >0.99 achievable
• THD <5% (with proper PFC controller)
• Compatible with CCM, DCM, CrM PFC modes

Applications

• Boost PFC converters (CCM/DCM/CrM)
• SMPS with active PFC stage
• EV on-board chargers
• Industrial AC-DC power supplies
• Server PSUs (80 PLUS Bronze to Titanium)
