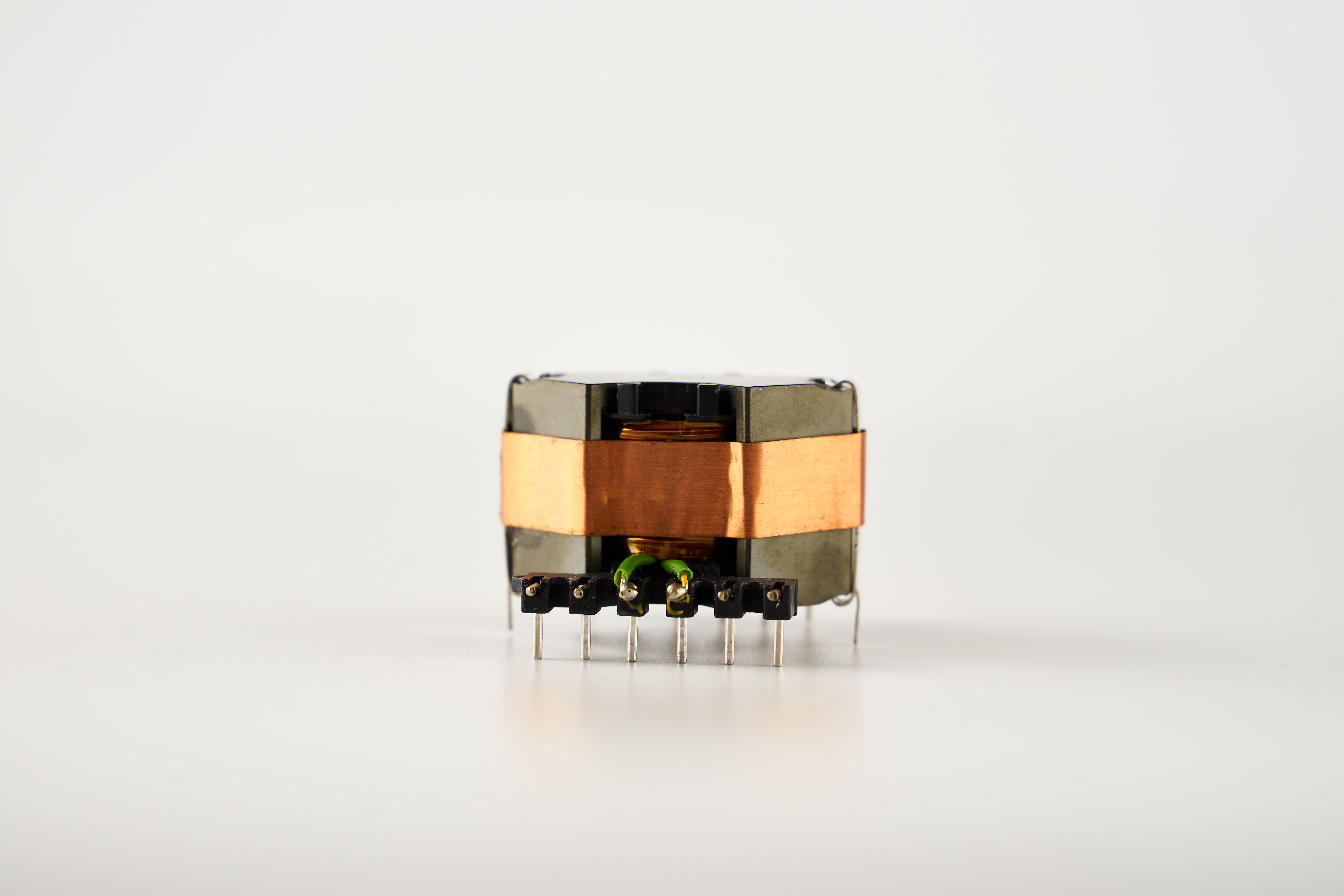

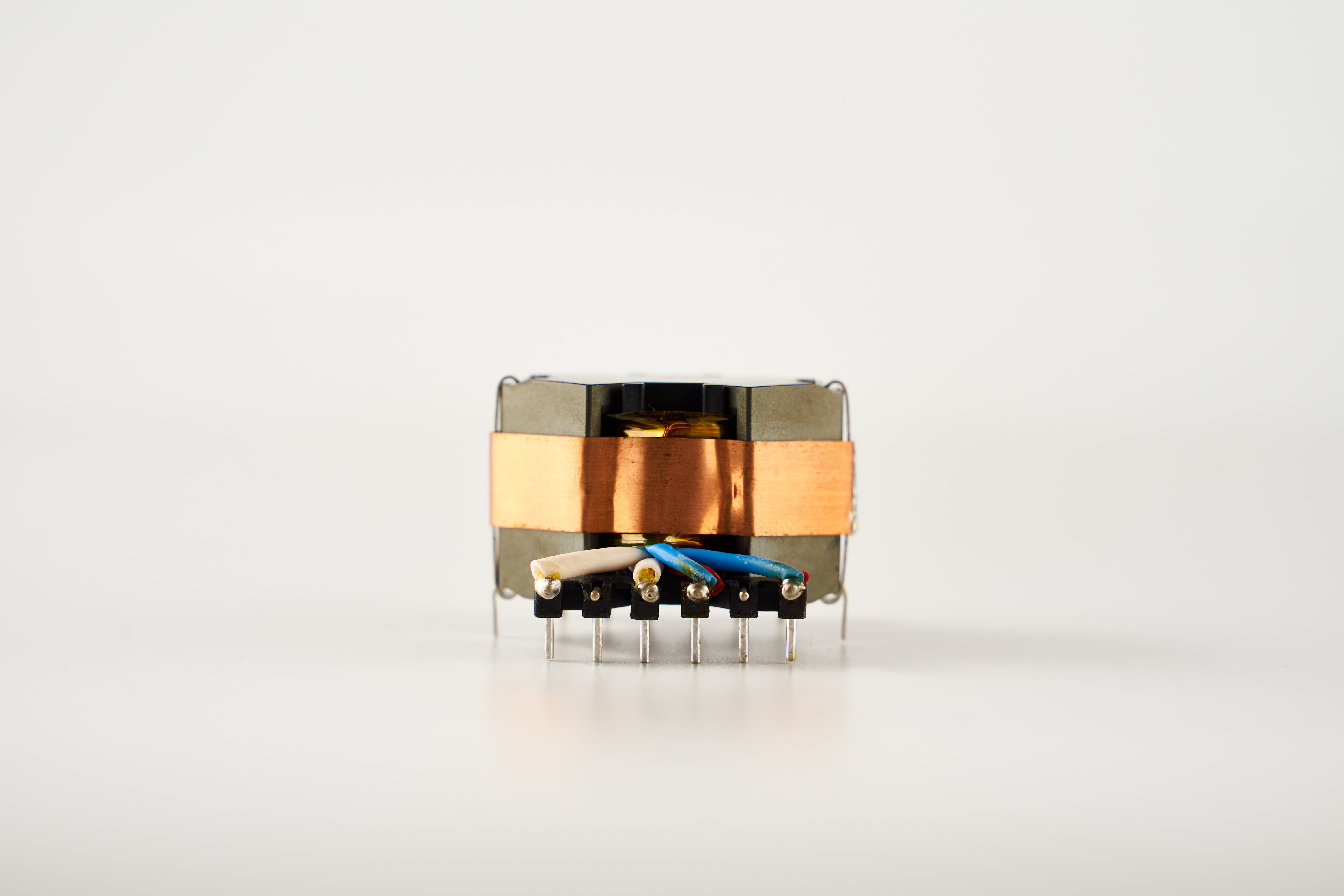

Telecom Transformer
Precision signal and pulse transformers for data communication, PoE, and telecom line coupling.
Specifications
| Frequency Range | 100kHz – 100MHz |
| Impedance Options | 50Ω, 75Ω, 100Ω, 120Ω, 600Ω |
| Common-Mode Rejection | >60dBm |
| Isolation Voltage | 1.5kV – 2.5kV AC |
| Core Shape | RM, EE, Pot-core |
| Package | SMD / Through-hole |
| Operating Temperature | −40°C to +85°C |
| Standards | IEEE 802.3, ITU-T G.992 |
| Compliance | RoHS3 |
Product Overview
KV Electronics Telecom Transformers (Signal/Pulse Transformers) are precision-engineered for data communication interfaces, Power over Ethernet (PoE), ADSL/VDSL, and telecom line coupling applications. Built on small-footprint RM, EE, or pot-core ferrite cores, these transformers provide excellent impedance matching, galvanic isolation, and common-mode noise rejection across a wide frequency band.
Available in SMD and through-hole packages compatible with standard PCB footprints (Ethernet magnetics, Halo-compatible, etc.). Custom inductance values, turns ratios, and pin-out configurations are available for OEM requirements.
Key Features
- Frequency range: 100kHz – 100MHz
- Impedance matching: 50Ω, 75Ω, 100Ω, 120Ω, 600Ω
- Common-mode rejection: >60dBm typical
- Isolation: 1.5kV – 2.5kV
- SMD and through-hole packages
- Compatible with IEEE 802.3, ITU-T G.992 standards
- Custom inductance and turns ratio
Applications
- Ethernet line coupling (10/100/1000BASE-T)
- Power over Ethernet (PoE / PoE+)
- ADSL/VDSL modem interfaces
- Industrial fieldbus isolation
- Telecom subscriber line circuits
